LM Standard Pneumatic Rotary Unions
LM Standard Pneumatic Rotary Unions

LM Standard Pneumatic Rotary Unions

Product Introduction

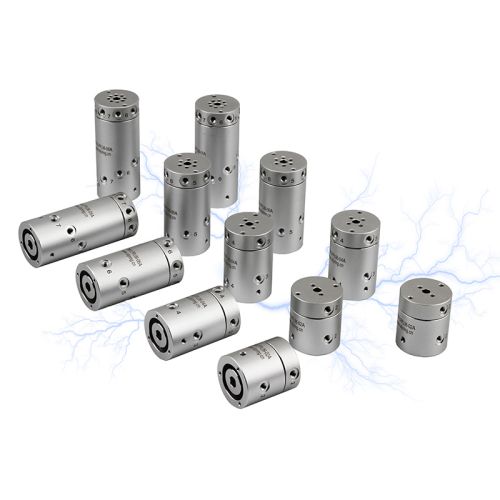

JINPAT LPPA-LM series rotary joints can rotate 360 degrees. The transmission medium can be inert gas, such as compressed air or vacuum. A sliding ring can be integrated to transmit various control signals. The sealing surfaces and sealing rings are made of special materials, offering advantages such as wear resistance, long service life, corrosion resistance, and leak prevention. Customers can install the LPPA rotary joint independently according to their application environment.


Features:
Durability and Reliability
High Performance
Customizable Solutions
Transmit Multiple Media
Main Applications:
Industrial automation equipment
Packaging equipment
SMT machine equipment
Testing equipment
Robot

Model

Model Code Passages(Gas/Flow) Medium Type Size Joint thread Flow orifice(mm) PDF 详情
LPPA-LM0101 1 in 1 out Air, Vacuum Φ40*Φ6*41 M5 Φ3
LPPA-LM0201 2 in 2 out Air, Vacuum Φ40*Φ6*50 M5 Φ3
LPPA-LM0401 4 in 4 out Air, Vacuum Φ40*Φ6*68 M5 Φ3
LPPA-LM0601 6 in 6 out Air, Vacuum Φ40*Φ6*86 M5 Φ3
LPPA-LM0801 8 in 8 out Air, Vacuum Φ40*Φ6*104 M5 Φ3
LPPA-LM1001 10 in 10 out Air, Vacuum Φ40*Φ6*123 M5 Φ3
LPPA-LM1201 12 in 12 out Air, Vacuum Φ40*Φ6*156 M5 Φ3
LPPA-LM1601 16 in 16 out Air, Vacuum Φ40*Φ6*201 M5 Φ3
LPPA-LM2401 24 in 24 out Air, Vacuum Φ40*Φ6*307 M5 Φ3
左右滑动
