High Frequency RF Rotary Joints: 18GHz Solutions for Medical and Aerospace

Product Overview

In high-stakes industries like medical imaging and aerospace, the ability to transmit complex signals through a 360-degree rotating interface is non-negotiable. Modern systems, such as Intravascular Ultrasound (IVUS) or high-resolution radar, demand more than just power; they require a High Frequency RF Rotary Joint capable of maintaining signal integrity at gigahertz levels. JINPAT’s latest RF solutions, including the upgraded LPHF series, are engineered to handle frequencies up to 18GHz while supporting simultaneous DC power transmission.

Actually, the challenge in RF rotation is the "insertion loss" and "VSWR" (Voltage Standing Wave Ratio). As frequencies increase to 18GHz, even the slightest impedance mismatch can ruin data transmission. It turns out that a precision-engineered RF rotary joint is the only way to ensure your system doesn't lose critical data during continuous 30rpm or high-speed operation.

Technical Specifications (Standard & Custom)

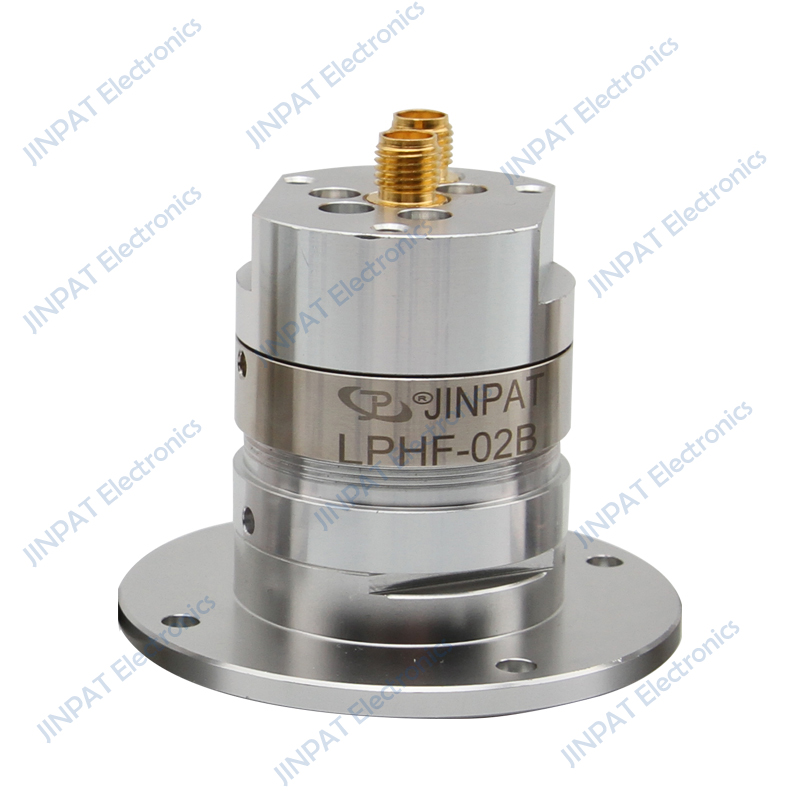

While our legacy models like the LPHF-02N set the industry standard, our current 2-channel RF rotary joints offer enhanced performance for modern 5G and medical applications.

Key Market Applications

1. Medical Imaging: IVUS Systems

For Intravascular Ultrasound (IVUS) systems, rotation at a steady 30rpm is standard, but the data resolution requires high-bandwidth throughput. Here’s the thing: most generic slip rings can't handle the delicate balance of ultra-low noise and high-frequency stability. JINPAT’s RF rotary joints are specifically optimized for medical diagnostics, ensuring that the ultrasound signal remains sharp without the interference often found in low-cost alternatives.

2. Aerospace and Satellite Communications

Satellite tracking antennas require a reliable 18GHz RF rotary joint to maintain constant links with orbiting satellites. Our units are designed for rugged environments, handling the power requirements (such as passing 15V, 2A DC directly on the RF lines) while keeping the footprint compact. We’ve noticed that US aerospace engineers often struggle with finding off-the-shelf units that meet these exact power-on-RF-line specs. That is where JINPAT’s custom engineering excels.

Engineering Customization: Beyond the Datasheet

Most US-based projects are currently in the evaluation phase, where a standard datasheet is just the starting point. Whether you need an LC terminated fiber optic integration or a specialized mounting flange for a 200-unit production run, the flexibility of the manufacturer is key.

At JINPAT, we don't just provide a component; we provide a validated solution. If your application requires high-voltage insulation (up to 500VDC) alongside a single-mode fiber (SMF) channel, we can integrate these into a single hybrid assembly. This reduces the mechanical complexity of your system and improves the overall Mean Time Between Failures (MTBF).

Conclusion

Selecting an 18GHz RF rotary joint is a decision that impacts the entire performance of your electronics. In a market where project budgets are tight and precision is paramount, choosing a proven brand like JINPAT ensures your prototype moves smoothly into production. If you are currently evaluating RF or medical rotary joints, our technical team in Texas and California can provide the rapid quotes and customized datasheets you need to hit your 30-day procurement window.
