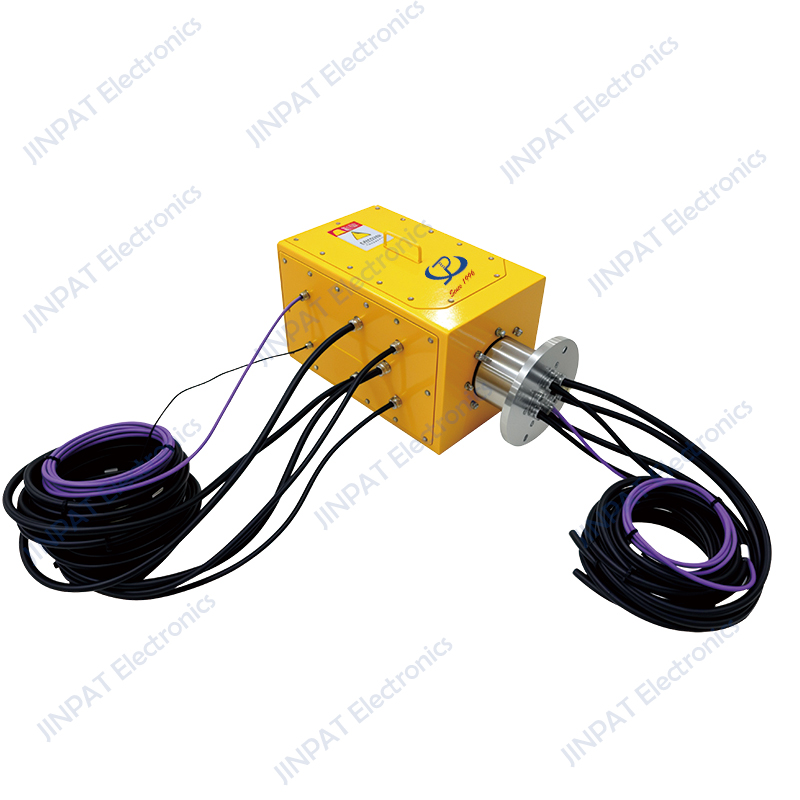

Technical Analysis of JINPAT LPA High-Current Slip Ring: Enabling Stable Power Supply for Stackers

In automated industrial equipment, the electrical connection of rotating mechanisms is a critical factor affecting overall stability. Stackers require continuous rotation during operation while simultaneously handling power supply and control signal transmission, placing high demands on slip ring performance.

JINPAT LPA high-current slip rings are optimized for industrial applications—featuring enhancements in electrical performance, structural design, and protection capabilities—to provide highly reliable connectivity solutions for large equipment such as stackers.

I. Multi-channel Current Transmission for Enhanced Power Supply

The JINPAT LPA high-current slip ring features a multi-channel design:

Supports 4-channel current transmission;

Rated current of 350A per channel;

Rated operating voltage of 690V;

Integrates one signal transmission channel.

Through the design of multiple independent current channels, the product meets the power transmission needs of large-scale equipment while enabling synchronous signal control.

II. Compact Structure for Space Optimization

Industrial equipment often features complex internal layouts, requiring connection components that balance performance with ease of installation.

The JINPAT LPA adopts a compact structure:

Small footprint;

Saves installation space;

Enhances equipment integration.

This optimized structural design adapts to various installation environments, offering greater application flexibility.

III. High-Strength Housing for Enhanced Reliability

To meet the demands of long-term operation in industrial settings, the JINPAT LPA utilizes an all-steel housing.

Key features include:

Excellent mechanical strength;

High resistance to external impacts;

Anti-rust surface coating.

This robust mechanical protection structure enhances the overall durability of the slip ring.

IV. IP54 Protection Design for Industrial Applications

Industrial environments often involve factors such as dust and moisture, necessitating high levels of equipment protection. The JINPAT LPA meets the IP54 protection rating:

Prevents dust from affecting internal components;

Protects against splashing water;

Enhances operational stability.

V. Modular maintenance design for improved service efficiency

Ease of maintenance directly impacts production efficiency.

The JINPAT LPA features detachable door panels:

Facilitates internal inspections;

Simplifies maintenance procedures;

Reduces maintenance time.

Conclusion

Through optimized electrical performance, structural reinforcement, and upgraded protection, the JINPAT LPA high-current slip ring ensures stable connectivity for large-scale industrial equipment, such as stackers.

Its high reliability, high capacity, and ease of maintenance make it a key solution for rotating equipment in industrial automation.
